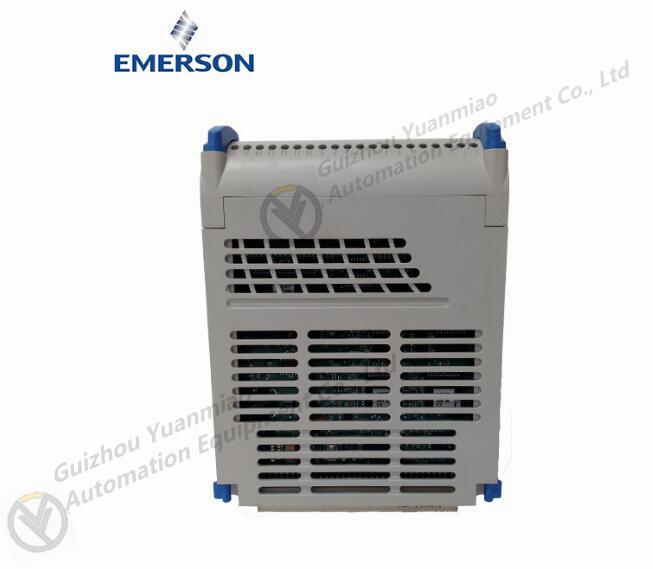

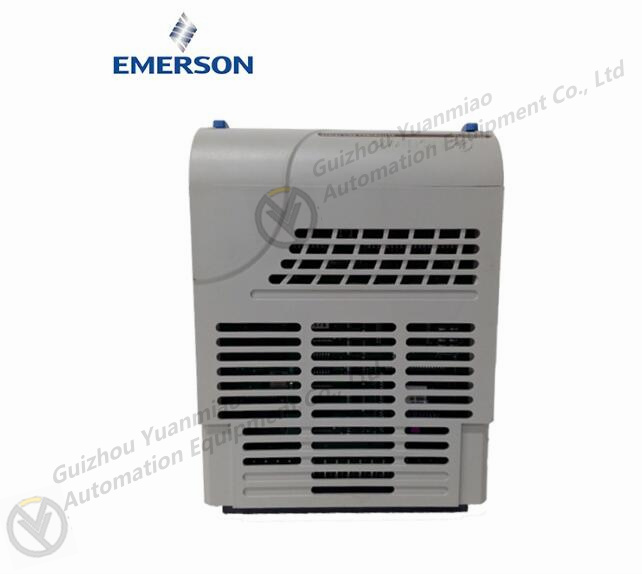

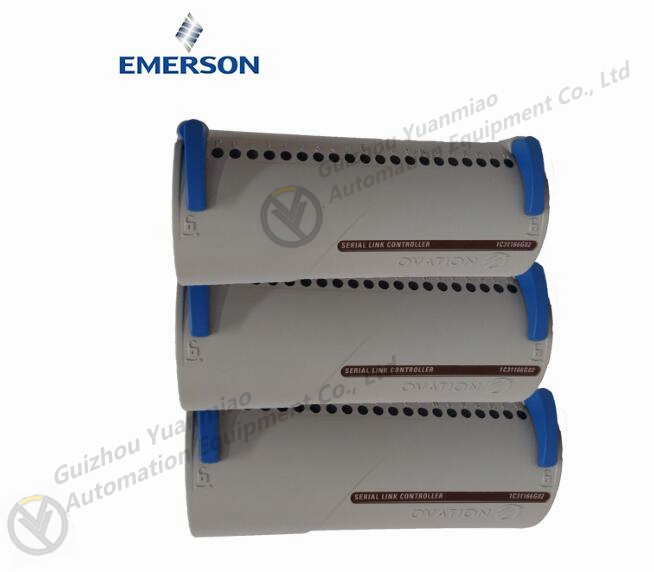

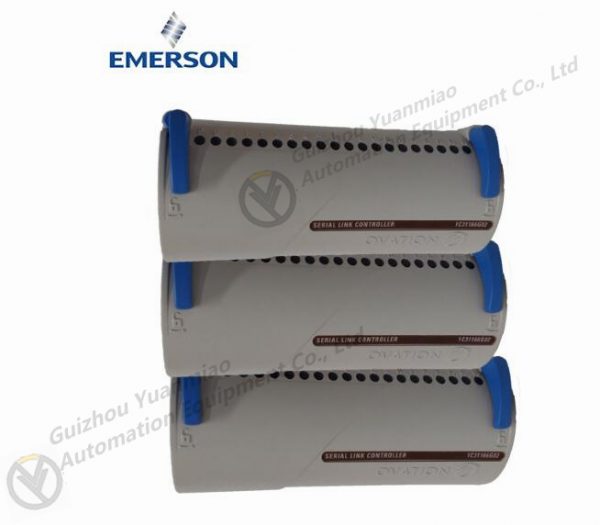

Emerson 1C31166G02 controller
MQ controller provides communication and control between field devices and other nodes on the control network. In the early DeltaV ™ The control policy and system configuration created on the system can be used with this powerful controller. The MQ controller provides all the features and functions of the MD Plus controller, with the same amount of memory. The control language executed in the controller is described in the configuration software suite product data sheet.
Improve productivity MQ controllers are as fast as MD Plus controllers and provide the same configurable memory as MD Plus controllers. The Ethernet port is full-duplex, with a maximum throughput of 100MB/s. The result is lower CPU utilization and higher control policy capacity.
Self-addressing. The ability of DeltaV controller to automatically identify itself in DeltaV control network is unique. When the controller is powered on, it will automatically assign a unique address — no dial switch, no configuration — just insert
Play!
Self-positioning. The physical location of the controller is easy to find. The LED on the surface of the controller can flash, providing strong visual clues.
Automatic I/O detection. The controller can identify all I/O interface channels located on the subsystem. Once the I/O interface is inserted, the controller will know the general characteristics of the field devices managed by the I/O interface. This reduces the valueless engineering associated with configuration.
Connect to electronic wiring and wireless I/O. Starting from DeltaV v14.3, you can assign CHARM and wireless devices connected through CHARM I/O card (CIOC) and wireless I/O card (WIOC) to MQ controllers. This makes it easier than ever to add I/O to existing controllers by simply adding CIOC and/or WIOC to the DeltaV regional control network.
Easy to use comprehensive control. The controller manages all control activities of I/O interface channels. It also manages all communication functions of the communication network. Timestamps, alerts, and trend objects are also managed within the controller. The controller executes all control policies at an execution rate of up to 100 milliseconds.
Data protection. All online changes made to the control parameters will be automatically stored for later uploading to the engineering database. In this way, the system always keeps a complete record of all data that has been changed online.
Advanced operation. The MQ controller can handle DeltaV batch processing options and advanced control functions.
1C31227G01 1C31203G01 1C31166G01 1X00102H01 1D54581G04
1C31169G01 1C31204G01 1C31227G02 1X00107H01 1D54582G01
1C31234G01 1C31205G01 1C31232G03 1X00126H02 1D54582G02
1C31169G02 1C31206G01 1C31233G01 1X00133H01 1D54582G03
1C31122G01 1C31107G01 1C31147G01 1X00161H01 1D54582G05
1C31125G02 1C31110G02 1C31147G02 1X00163H01 1C31192G01
1C31224G01 1C31113G01 1D42128G01 1X00163H02 1D54582G06
1C31116G04 1C31113G02 1D54416G01 1X00163H03 1C31166G02
1C31150G02 1C31113G03 1D54458G01 1X00163H04 1X00024H03
1C31132G01 1C31113G04 1D54471G02 1X00185H01 1X00093G04
1C31129G03 1C31113G05 1D54471G03 1X00377H01 1X00093G05
3A99158G01 1C31113G06 1D54540G01 1X00415H01 1X00093G06
1X00024H01 1C31116G02 1D54544G01-8 1X00416H01 1X00093G07
3A99132G02 1C31116G03 1D54557G03 1X00416H02 1X00093H08
ST24B3 1C31161G02 1D54557G07 1X00416H03 1X00093H09
5A26391H24 1C31164G02 1D54557G10 1X00416H04 1X00093G10
———————————————————-
