DSDP170 57160001- ADF is a pulse counting board produced by ABB. The following is its detailed information:
Basic information
Product model: DSDP170
Product Code: 57160001- ADF
Brand: ABB
Country of Origin: Sweden
Product dimensions: 328.5mm in length, 238.5mm in width, 18mm in height
Net weight of product: 0.38kg
Certification: CE, UL, CSA, etc
Functional Features
High precision counting: Using high-precision counting technology, it can accurately measure and count high-speed pulse signals, suitable for pulse signals output by sensors such as rotary encoders and photoelectric encoders, with a maximum pulse frequency of up to 2.5MHz.
Multiple input interfaces: Supports push-pull, open drain, open source, and other input interfaces, making it easy to connect with different types of sensors.
Programmable settings: Users can set module parameters through programming, such as counting range, counting direction, pulse polarity, etc., to meet different application requirements.
High speed data transmission: Supports high-speed data transmission and can quickly transmit count values and other data to the control system or upper computer software for processing.
Multiple output interfaces: Provides multiple output interfaces such as parallel output, serial output, PWM output, etc., making it easy to connect with other devices or control systems.
Diagnosis and Calibration: Equipped with onboard diagnostic and calibration functions to ensure measurement accuracy and reliability.
Wide input voltage range: compatible with 5-24VDC input voltage.
application area
Speed measurement: used to measure the speed of rotating shafts, motors, or conveyor belts.
Position measurement: It can track the position of linear actuators or valves, etc.
Flow measurement: capable of measuring the flow rate of liquids or gases.
Event counting: used to count discrete events such as product units or machine cycles.
Industrial control system: suitable for counting and measuring tasks in various industrial scenarios.

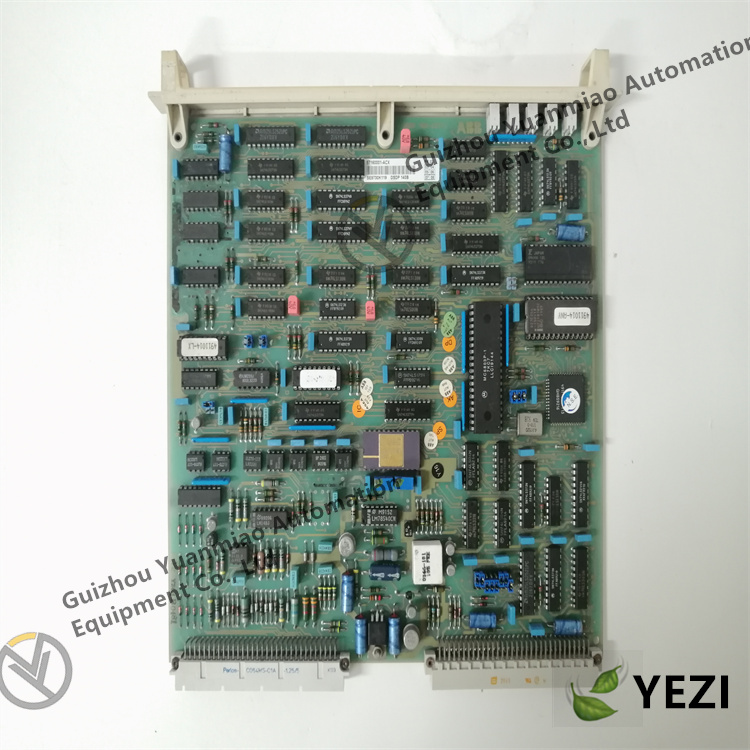

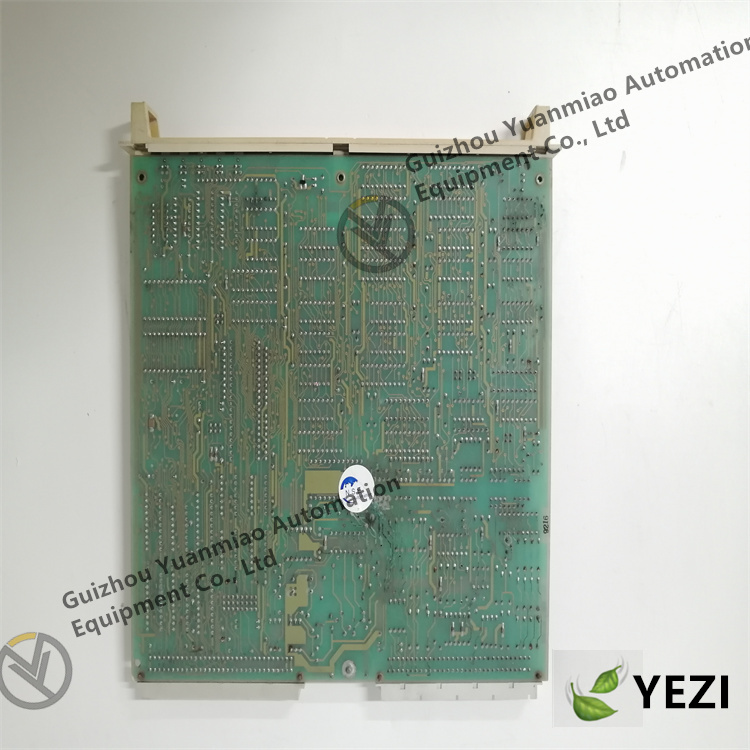

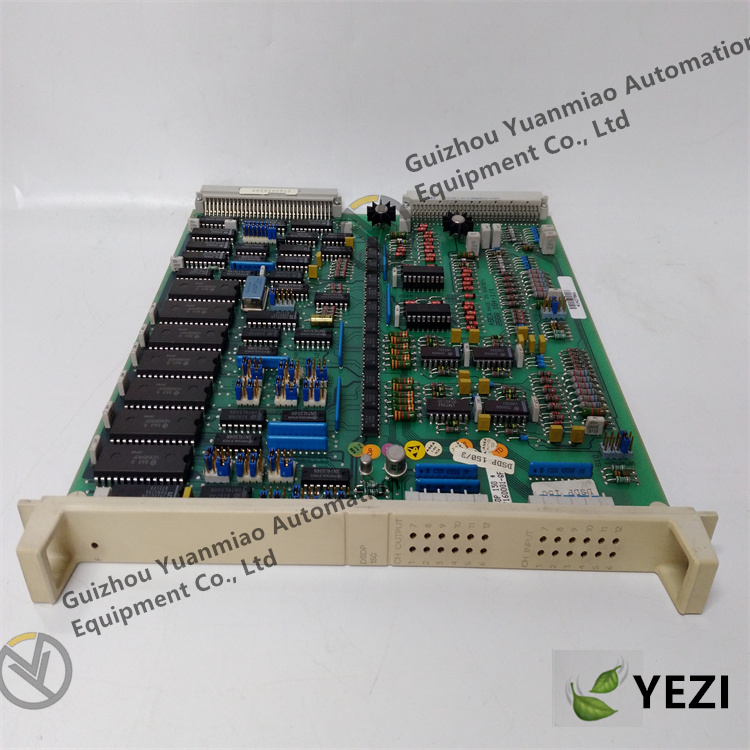

Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
The company has a leading advantage in discontinuing control system components. We have a large inventory and surplus of control system components, as well as some hardware for the discontinued control system. We have also released many new hardware and products to support your existing control system or apply new control technologies. The discontinued “DCS system spare parts, PLC module spare parts,” complete machine and accessories series have a strong advantage. As long as you need PLC products, we can help you find them. The company has a great price advantage.
