DSDO115A 3BSE018298R1 is a digital output board produced by ABB. The following is its detailed information:
essential information:
Product model: DSDO115A
Product Code: 3BSE018298R1
Brand: ABB
Country of Origin: Sweden
Product dimensions: Height 22.5mm, Width 234mm, Depth 324mm
Net weight of product: 0.32kg
Functional features:
Output channels: With 32 independent digital output channels, it can be used to control various industrial equipment such as relays, switches, actuators, etc. Each channel can be independently configured as a current sink or pull mode to adapt to different types of loads.
High current capacity: Each output channel can withstand up to 2A of current, suitable for controlling devices with high power.
Fast switching speed: Fast response time, suitable for application scenarios that require high switching speed, such as process control systems, factory automation, etc.
Diagnostic function: Each channel is equipped with LED indicator lights for easy troubleshooting and status monitoring.
Optional redundancy: Redundancy can be achieved by using two boards to improve system availability and reliability.
Compliant with environmental standards: Compliant with RoHS standards, meeting environmental requirements.
Technical parameters:
Power supply voltage: 24V DC
Power consumption: 8 watts (24 volts)+ 5V@250mA ，+ 3.3V@10mA
Current: 0.5A rms, 330Hz
Input quantity: 2
Input impedance: 10kohm
Working temperature:+5 to+55 ° C (32 to 131 ° F)
Non operating temperature: -40 to+70 ° C (-40 to 158 ° F)
Application areas:
Industrial automation: used on production lines in manufacturing to control the start stop and operation status of various equipment, achieving automated production processes.
Process control: In process control systems in industries such as chemical, petroleum, and power, control valves, pumps, fans, and other equipment to ensure the stability and safety of the production process.
Machine automation: Suitable for control systems of various mechanical equipment, such as CNC machine tools, robots, etc., to achieve precise control of the equipment.
Building automation: In intelligent buildings, it is used to control lighting systems, air conditioning systems, access control systems, etc., to achieve intelligent management of building equipment.

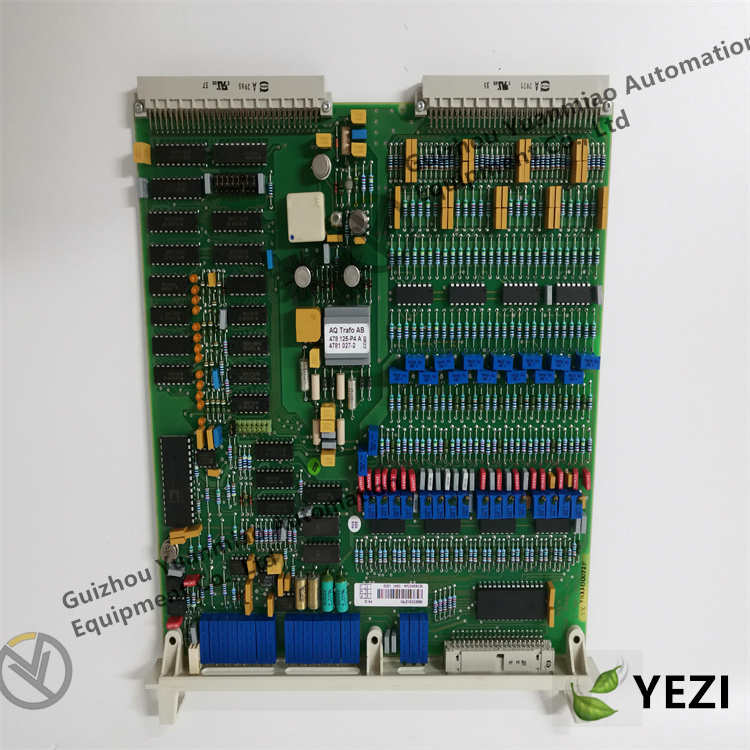

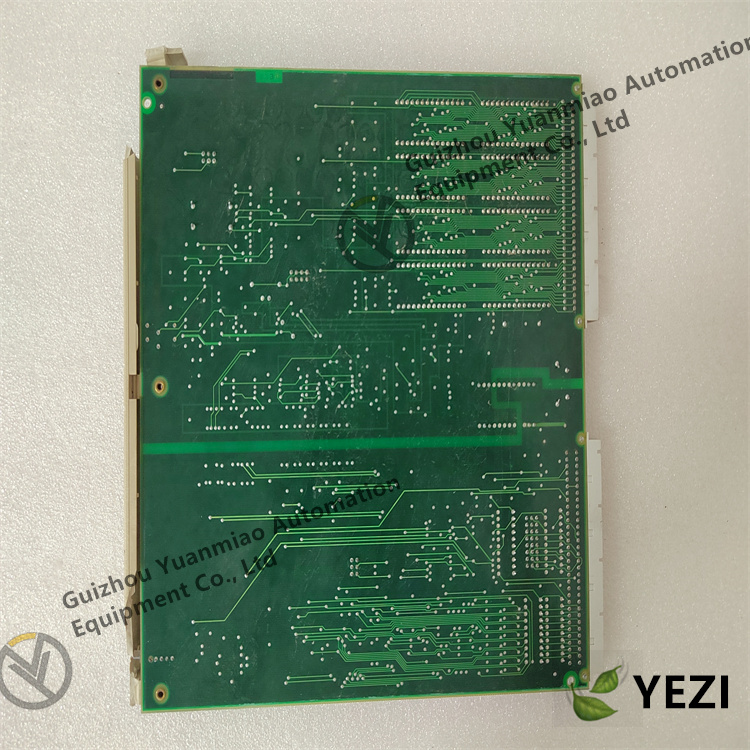

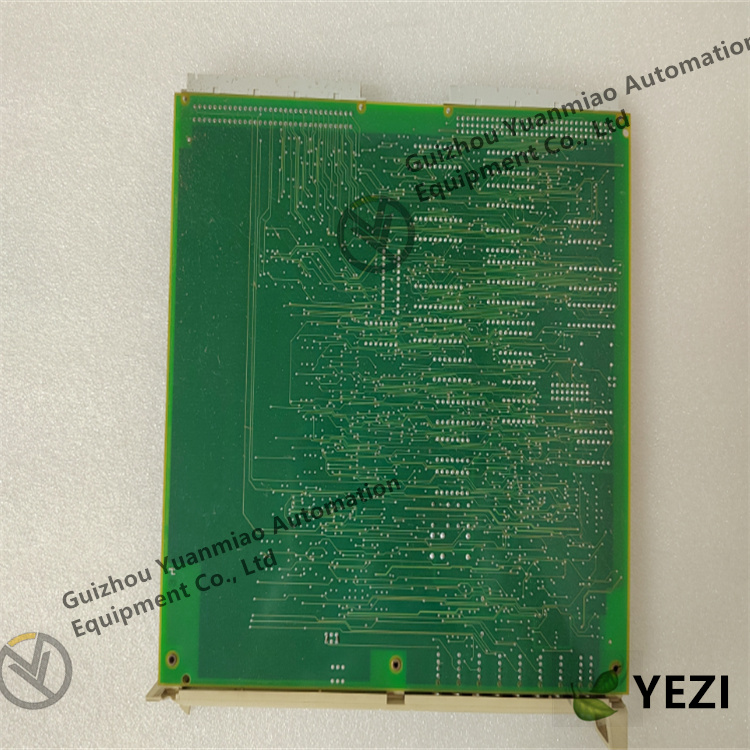

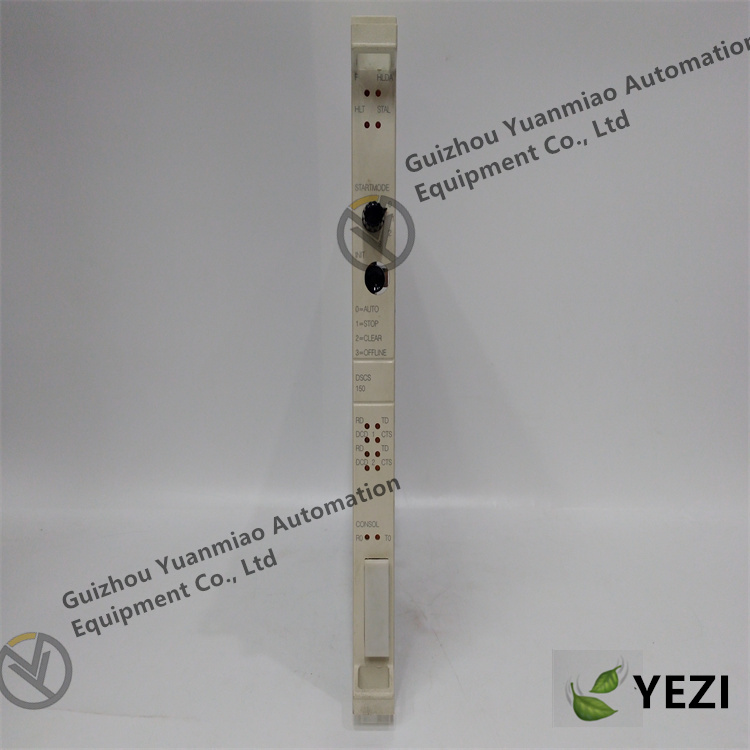

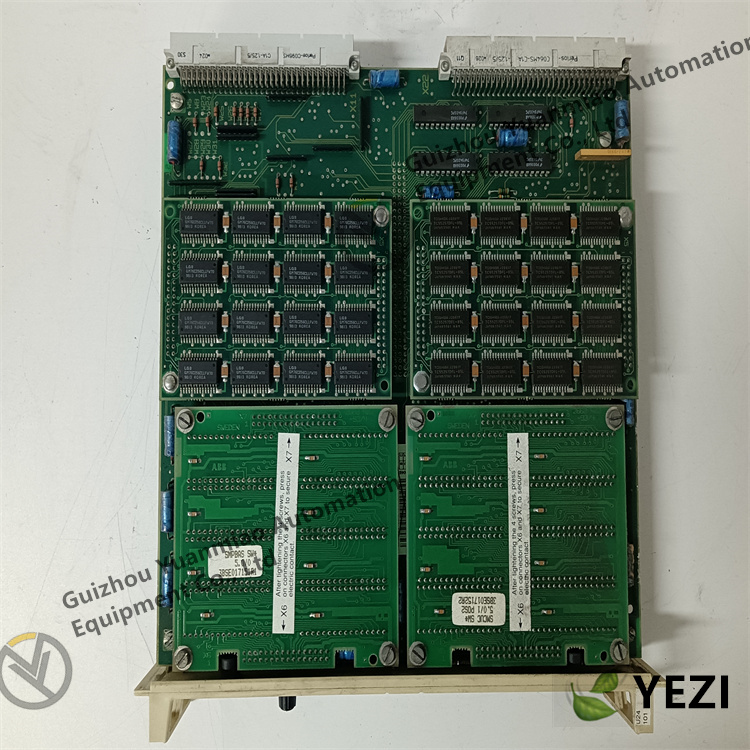

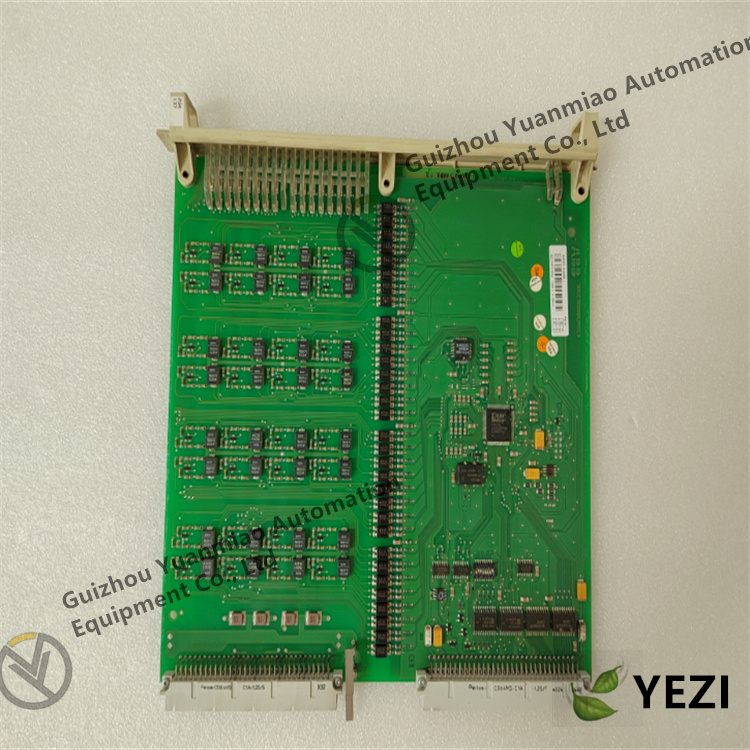

Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
The company has a leading advantage in discontinuing control system components. We have a large inventory and surplus of control system components, as well as some hardware for the discontinued control system. We have also released many new hardware and products to support your existing control system or apply new control technologies. The discontinued “DCS system spare parts, PLC module spare parts,” complete machine and accessories series have a strong advantage. As long as you need PLC products, we can help you find them. The company has a great price advantage.
