BENTLY 3500/42M Channel module

BENTLY 3500/42M Channel module

3500/70M Reciprocating Pulse Speed Monitor 3500 Power TSI System
feature
● Accepts 1 to 4 inputs, including:
-Speed
Acceleration sensor signal
● Rack space requirements:
-Display: 1 full height front slot
-I/O module 1 full height rear slot
● Programmable alarm delay
● Measurement variables:
-Pulse acceleration
-Acceleration 2
-Reciprocating speed
-Low frequency reciprocating speed
The Bently 3500/70M Reciprocating Pulse Velocity Monitor is a 4-channel device that is used as part of the Reciprocating compressor solution package to monitor compressor crankcase and beam vibration. The monitor receives input from seismic sensors, adjusts the signal to obtain vibration measurements, and compares the adjusted signal with user programmable alarms.
You can use the 3500 rack configuration software to program each channel to perform the following functions:
● Pulse acceleration
● Acceleration 2
● Reciprocating speed
● Low frequency reciprocating speed

The additional software of 125680-01 intelligent function kit for processing or separating liquids saves users more time. As part of the pre installed software package, the wizard will visually guide users through the debugging process. The system is parameterized and the axis is automatically referenced. Sequencing is carried out on an intuitive basis, with the help of ready-made functional modules, which can be completed in a few minutes. Due to the flexible combination of hardware platforms and innovative software, even complex line movements of 125680-01 can be reproduced through simple graphic programming. With the help of appropriate functional modules, production line integration can also be easily achieved.

135137-01 is a position/O module with internal terminals, used for proximitors, RPTs, or DC LVDTs. It was designed and developed by Bentley Nevada. It is part of the 3500/45 monitoring system. The position monitor is a 4-channel device that can receive inputs from rotary potentiometers, proximity sensors, DC linear variable differential transformers, AC linear variable differential transformers, and rotary position sensors (RPTs).
The main function of the position monitor is to provide the following functions:
● By continuously comparing monitoring parameters and predefined alarm settings, alarms are triggered to protect the machine.
● Important machine knowledge for operation and maintenance personnel

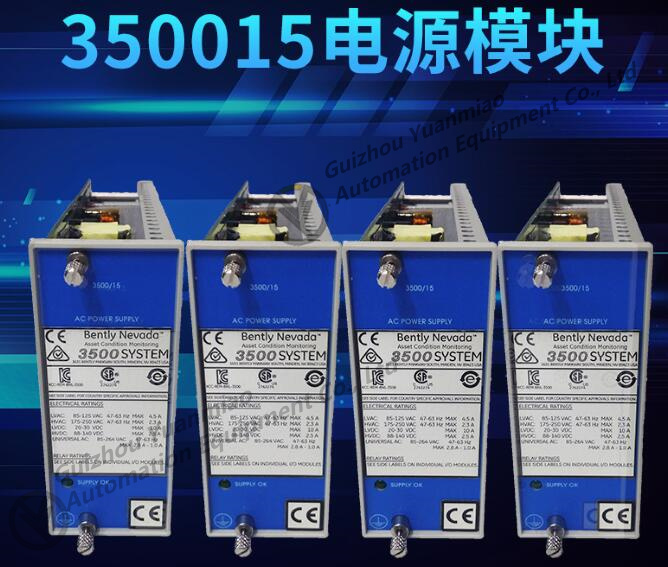

The 3500/15 AC and DC power supplies accept a wide range of input voltages and convert them into voltages acceptable to other 3500 modules. The following power supplies are available for the 3500 series machine protection system: – General AC
Power supply – High voltage DC power supply – Low voltage DC power supply
