BENTLY 3500/15 Power module

BENTLY 3500/15 Power module

3500/15 is a high-voltage AC/DC power module developed by Bently Nevada. This component is a half height module and must be installed in the designated slot on the left side of the rack. This component serves as the power module for the Bently Nevada mechanical condition monitoring system. The Legacy 3500 AC power supply, high-voltage AC PIM, and low-voltage AC PIM are not compatible with the universal AC power supply and PIM (power input module). The Legacy 3500 high-voltage and low-voltage DC power supplies and PIMs are not compatible with the Legacy 3500 high-voltage and low-voltage DC power supplies and PIMs.

3500/15 Features
A 3500 rack can accommodate one or two AC and DC power supplies in any combination. The entire rack can be powered by any power source. When two power supplies are placed in the rack, one in the bottom slot is used as the main power supply, while the one in the higher slot is used as the backup power supply. If a second power supply is installed, it serves as a backup power supply for the first power supply. As long as a second power supply is installed, removing or inserting any power module will not affect the operation of the rack. AC and DC power supplies accept various input voltages and convert them into voltages that other 3500 modules can use. The 3500 series mechanical protection system is equipped with the following power supplies:
Universal AC power supply
High voltage DC power supply
Low voltage DC power supply
compatibility
The Legacy 3500 AC power supply, high-voltage AC PIM, and low-voltage AC PIM are not compatible with the universal AC power supply and PIM (power input module).
Legacy 3500 high-voltage and low-voltage DC power supplies and PIMs cannot be used together with high-voltage and low-voltage DC power supplies and PIMs.
3500/15
Input specifications
Universal voltage AC
Description – This option uses a universal AC power supply and a universal AC power input module (PIM).
Input voltage – nominal 110 to 220 Vac
85 to 264 Vac RMS
120 to 373 Vac pk
The universal AC power supply and power input module are not compatible with traditional high-voltage AC or low-voltage AC devices.
High voltage direct current
Description – This option uses a high-voltage DC power supply and a high-voltage DC power input module (PIM).
Input voltage -88 to 140 Vdc
Low voltage direct current
Description – This option uses a low-voltage DC power supply and a low-voltage DC power input module (PIM).
Input voltage -20 to 30 Vdc
physical characteristics
Power module size: 120.7 mm x 50.8 mm x 251.5 mm (H x W x D)
Power module weight: 1.39 kg
Power input module size: 120.7 mm x 25.4 mm x 114.3 mm (H x W x D)
Power input module weight: 0.34 kg

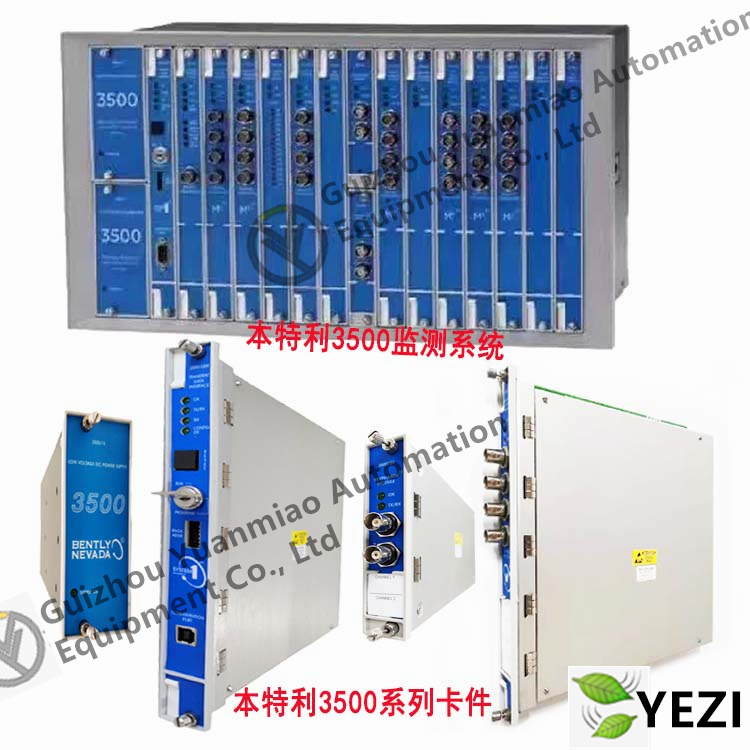

Rack space requirements
Power module
On the left side of the rack, there are two half height slots. Each slot accommodates one power supply.
Two slots can accommodate one power supply at the same time, allowing for redundant power supplies.
Power input module
A half height module located directly behind the relevant power supply.
