BENTLY NEVADA 3500/62 monitor

BENTLY NEVADA 3500/62 monitor

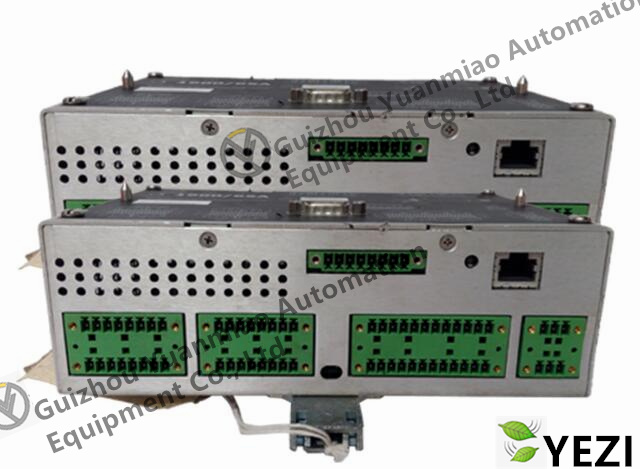

The 1900/65A universal device monitor aims to continuously monitor and protect devices used in various applications and industries. The low cost of this monitor makes it an ideal solution for general-purpose machines and processes that can benefit from continuous monitoring and protection. The input 1900/65A provides four sensor inputs and four temperature inputs. The software can configure each sensor input to support 2-wire and 3-wire accelerometers, speed sensors, or proximity sensors. Each temperature input supports E, J, K, and T type thermocouples as well as 2-wire or 3-wire RTDs.

1900/65A Traditional Bently Nevada ® Monitoring systems, such as the 3500 series, are widely used to protect large and complex rotating machinery. However, for non critical equipment, basic equipment, or general purpose equipment, due to the high cost of this continuous monitoring system, it is rarely adopted, resulting in a lack of sufficient protection measures for these equipment during operation. The latest member of the Bently Nevada 1900 protection monitor product line, 1900/65, has been developed. It is a flexible and low-cost system specifically designed for continuous monitoring and protection of general-purpose or non critical equipment in multiple industries and applications.

Compared to traditional framework based systems, it is a low-cost continuous online protection system
Adopting a reliable circuit design that has been successfully applied, similar to the circuit design in the 3500 and 3300 monitoring systems
8-channel monitor, providing more inputs and types than other 1900 series monitors
Easy installation and configuration through small and flexible installation options and configuration software
The monitor can be applied separately or in conjunction with optional display devices to indicate all channels and variables locally
The display device can be installed directly on the monitor or separately, connected to the monitor through a single cable, with a maximum distance of 250 feet from the monitor
Especially suitable for independent applications, sliding installation applications, and assembly machinery applications
Can be designed for assembly into low-cost OEM equipment packages

135137-01 is a position/O module with internal terminals, used for proximitors, RPTs, or DC LVDTs. It was designed and developed by Bentley Nevada. It is part of the 3500/45 monitoring system. The position monitor is a 4-channel device that can receive inputs from rotary potentiometers, proximity sensors, DC linear variable differential transformers, AC linear variable differential transformers, and rotary position sensors (RPTs).
The main function of the position monitor is to provide the following functions:
● By continuously comparing monitoring parameters and predefined alarm settings, alarms are triggered to protect the machine.
● Important machine knowledge for operation and maintenance personnel
The 3500/15 AC and DC power supplies accept a wide range of input voltages and convert them into voltages acceptable to other 3500 modules. The following power supplies are available for the 3500 series machine protection system: – General AC
Power supply – High voltage DC power supply – Low voltage DC power supply
