BENTLY 3500/15-02-00-00 Continuous online monitoring system
The 3500/15 AC and DC power supplies are half height modules that must be installed in designated slots on the left side of the rack. A 3500 rack can contain one or two power supplies with any combination of AC and DC. Any power source can provide power to the entire rack.
When two power supplies are installed in a rack, one in the lower slot serves as the main power supply and the other in the upper slot serves as a backup power supply. If installed, the second power supply is a backup power supply to the main power supply.
As long as a second power supply is installed, removing or inserting any power module will not interrupt the operation of the rack.
The 3500/15 AC and DC power supplies can accept various input voltages and convert them into voltages that other 3500 modules can accept. The 3500 series mechanical protection system provides the following power supplies:
Universal AC power supply
High voltage DC power supply
Low voltage DC power supply
3500/15-AXX-BXX-CXX
Option Description
A: Power type (upper slot)
0 1 low-voltage AC (85 to 132 Vac rms)
0 2 High Voltage AC (175 to 264 Vac rms)
0 3 high-voltage direct current (88 to 140 Vdc)
0 4 low-voltage DC (20 to 30 Vdc)
05 Universal AC Voltage (85 to 264 Vac rms)
B: Power type (lower slot)
0 0 No power supply (only used when a single power supply is required)
0 1 low-voltage AC (85 to 132 Vac rms)
0 2 High Voltage AC (175 to 264 AC rms)
0 3 high-voltage direct current (88 to 140 Vdc)
0 4 low-voltage DC (20 to 30 Vdc)
05 Universal AC Voltage

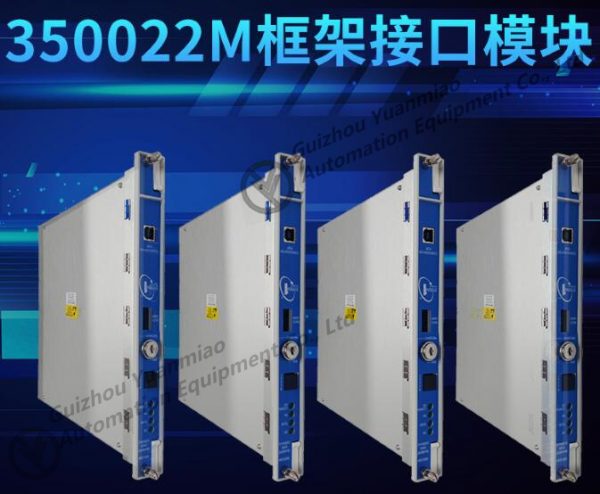

The 3500 system is used for vibration monitoring and protection of large machinery. The Bentley 3500 system must be equipped with a rack 3500/05, power supply 3500/15, and rack interface module 3500/22M
3500/15 (front panel 127610-01, back panel 125840-01)
3500/15-02-02-00, both upper and lower slots are installed, so it is a dual power supply,
3500/15-02-00-00, installed in the upper slot, not in the lower slot, therefore it is a single power supply
3500/15-05-05-00, both upper and lower slots are installed, so it is a dual power supply
The following is the upgraded 3500/15 universal AC power module:
3500/15 (front panel 106M1079-01, back panel 106M1081-01)
3500/15-05-05-00, both upper and lower slots are installed, so it is a set of dual power supplies
3500/15-05-00-00, upper slot installed, lower slot not installed
Bently Nevada 3500/15 is a power module commonly used in industrial monitoring and mechanical protection systems, particularly for monitoring equipment parameters such as vibration, temperature, and pressure. Bently Nevada is a company specializing in mechanical vibration monitoring and measurement, and their products are mainly used in the industrial field to ensure the normal operation of equipment and prevent equipment failures.
The following are possible product features and uses:
Power supply: The 3500/15 power module is used to provide power to the monitoring system, ensuring that the monitoring equipment and system are always in working condition.
Sensor Power Supply: This module may provide the necessary power to drive sensors connected to the system, such as vibration sensors, temperature sensors, etc.
Data processing: The power module may also process the data collected from sensors for transmission to the central monitoring system for analysis.
Condition monitoring: The 3500/15 power module is typically used in conjunction with other Bently Nevada devices to monitor device vibrations and other parameters, detect any abnormal situations, and take early preventive measures.
Fault prediction: By monitoring the vibration and status of equipment, the system can make fault prediction, helping maintenance personnel predict possible faults and take appropriate repair measures.
Data recording: This module may also have a data recording function to record the monitored data for subsequent analysis and troubleshooting.
