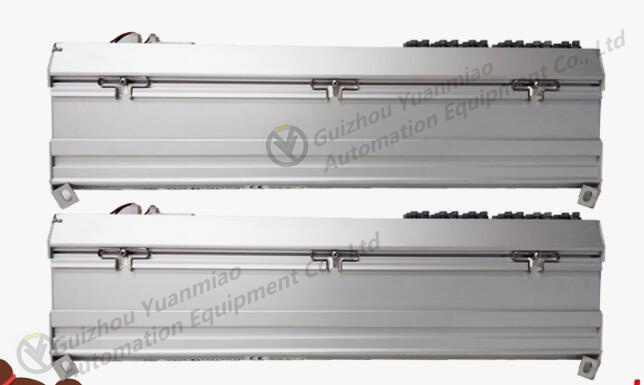

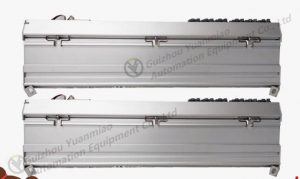

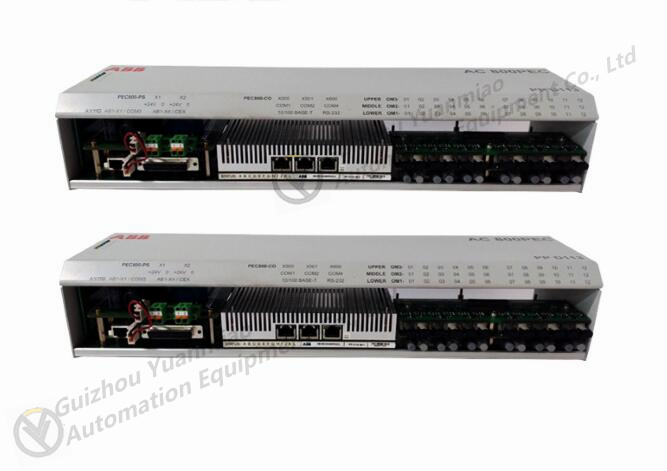

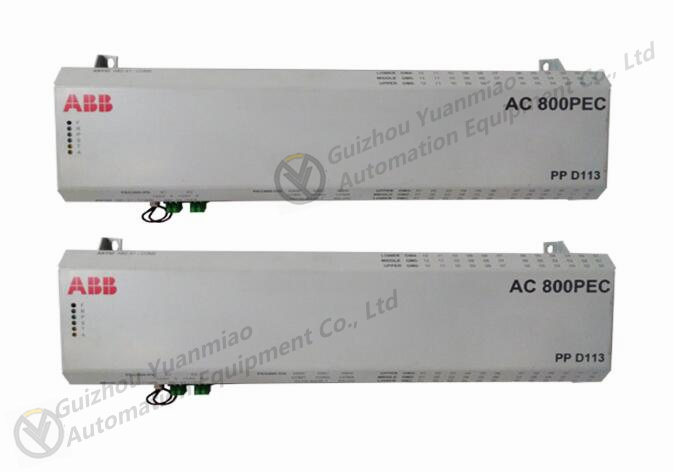

ABB PPD113B01-10-150000-3BHE023784R1023 module

ABB PPD113B01-10-150000-3BHE023784R1023 module

Features and Application of ABB Power Module
ABB power module adopts advanced integrated circuit technology to integrate power equipment and logic control circuit into a highly integrated and fully sealed integrated block with power function. The power module has
The advantages of convenient use and reliable performance represent the development direction of power technology. The switching power supply has the advantages of high efficiency and small size, and is suitable for integration; However, because of its low efficiency, the linear regulated power supply is generally about 50%, so it is difficult to achieve high power (above 100W) integration. The power module launched by Jimmy Technology refers to the switching power module, focusing on the DC/DC converter. Today’s switching power modules can reach hundreds of watts or even kilowatts.
Power module products mainly include DC/DC conversion module, power factor correction module, AC input module, etc., Their main characteristics are:
◆ The operating frequency of ABB power module is high, generally 300KHz~1MHz.
◆ ABB power module is small, ultra-thin, generally less than 20mm thick and light, generally less than 200g.
◆ ABB power module has high power density, generally 5~10W/Cc.
◆ ABB power module is easy to use with few external components, and can also realize parallel expansion, logic control and remote control.
◆ ABB power module is applicable to a wide range of grid voltage changes. When the AC voltage fluctuates from 150V to 280V, the output voltage can be stable.
◆ ABB power module has a wide temperature range, from – 55 ℃ to+100 ℃. Generally, the high temperature substrate temperature is+85 ℃, and the low temperature is 0 ℃, – 20 ℃, – 40 ℃, – 55 ℃.
◆ ABB power module is fully sealed, with three prevention functions, waterproof, dust-proof and anti-collision.
◆ ABB power module generally adopts zero voltage switch or zero current switch technology, with good electromagnetic compatibility.
ABB power module has a high standard structure and is easy to install.
