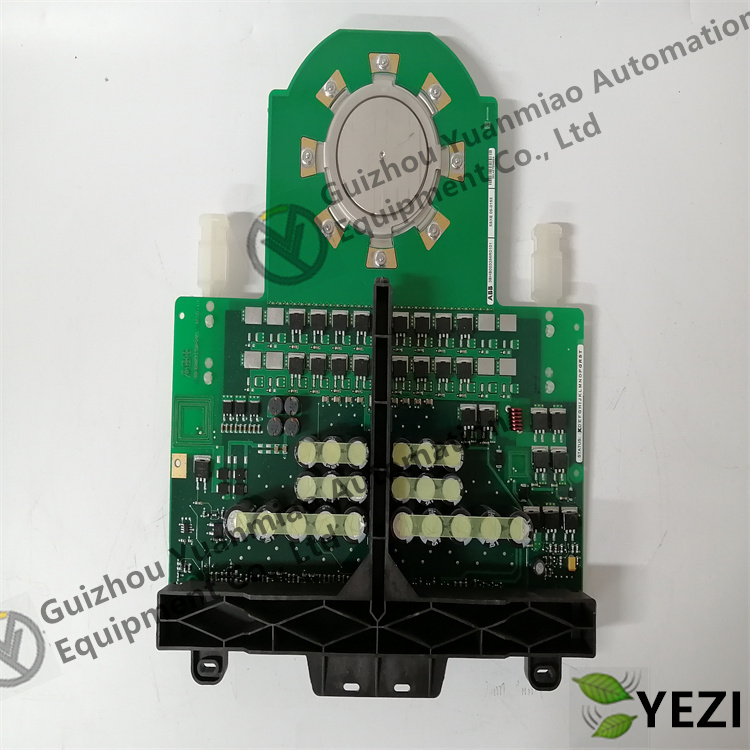

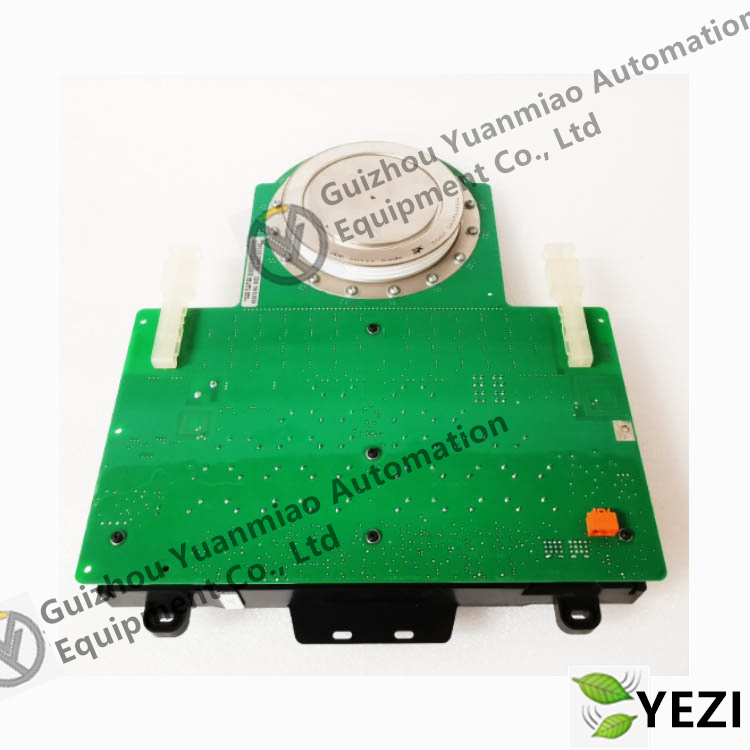

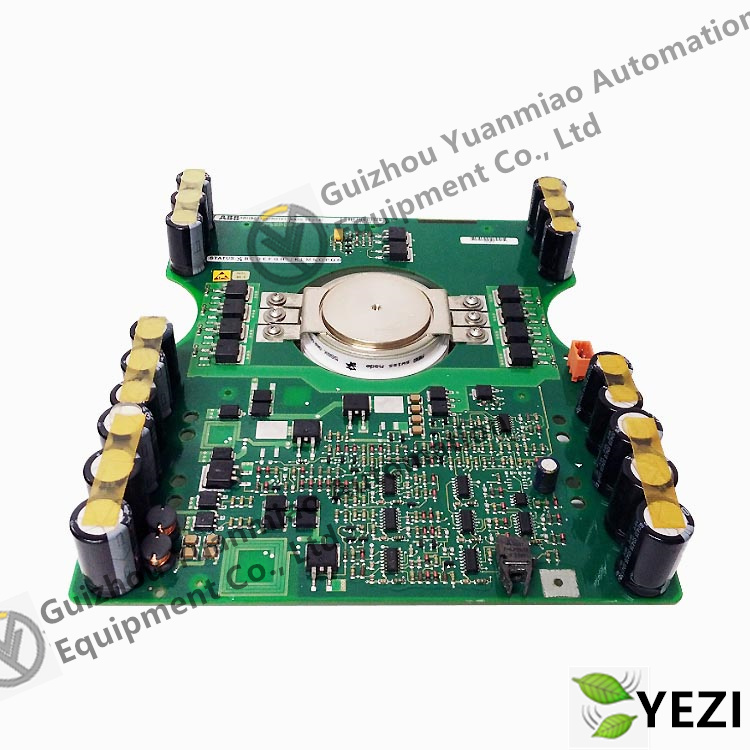

ABB 5SHX2645L0002 IGCT high-voltage frequency converter card
ABB 5SHX2645L0002 IGCT High Voltage Inverter Card Product Details:
ABB 5SHX2645L0002 is an IGCT (Insulated Gate Bipolar Transistor) high-voltage inverter card. IGCT is a power semiconductor device commonly used in power electronics applications, particularly in frequency converters and drive systems. Here are some possible product application areas:
Inverter and drive system: IGCT is commonly used in AC motor drive systems to achieve adjustable speed and controllable operation. This is widely used in industrial and commercial fields, such as wind power generation, pump control, and other electric motor drive applications.
Grid stability: IGCT can be used in power systems to improve grid stability and control. They can be used to adjust current and voltage to ensure smooth operation of the power system.
AC power supply: IGCT is also used in high-voltage direct current transmission (HVDC) systems to convert electrical energy from AC power to DC power and provide higher efficiency in long-distance transmission.
Power Electronics Experiment: IGCT can be used in power electronics laboratories to study and test different types of power electronics systems, in order to improve the efficiency and performance of power systems.
IGCT Integrated Gate Commutated Thyristor is a new type of power semiconductor switching device developed for medium voltage frequency converters and used in giant power electronic complete sets of equipment (Integrated Gate Commutated Thyristor=Gate Commutated Thyristor+Gate Unit). Proposed by ABB in 1997. IGCT enables the converter device to
Significant progress has been made in power, reliability, switching speed, efficiency, cost, weight, and volume, bringing new leaps to power electronics equipment. IGCT integrates GTO chips with anti parallel diodes and gate driver circuits, and then connects them with the gate driver in a low inductance manner on the periphery. It combines the advantages of stable turn off capability of transistors and low on state loss of thyristors, and exhibits the performance of thyristors during the conduction stage and the characteristics of transistors during the turn off stage. IGCT has the characteristics of high current, high blocking voltage, high switching frequency, high reliability, compact structure, and low conduction loss. Moreover, it has low manufacturing cost and high yield, and has been widely used in power system grid devices (100MVA) and medium power industrial drive devices (5MW). IGCT has been successfully applied in the field of medium voltage frequency converters for 11 years (until 2009). Due to its high-speed switching capability, IGCT does not require buffer circuits, requiring fewer power components and greatly improving operational reliability.
IGCT combines the high-speed switching characteristics of IGBT (Insulated Gate Bipolar Transistor) with the high blocking voltage and low conduction loss characteristics of GTO (Gate Turn Off Thyristor). Generally, the trigger signal is transmitted to the IGCT unit through optical fiber. In the phase module of the active rectifier unit of ACS6000, each phase module is composed of IGCT, diode, and clamp capacitor, and is powered by an independent gate power supply unit GUSP.
Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
The company has a leading advantage in discontinuing control system components. We have a large inventory and surplus of control system components, as well as some hardware for the discontinued control system. We have also released many new hardware and products to support your existing control system or apply new control technologies. The discontinued “DCS system spare parts, PLC module spare parts,” complete machine and accessories series have a strong advantage. As long as you need PLC products, we can help you find them. The company has a great price advantage.
