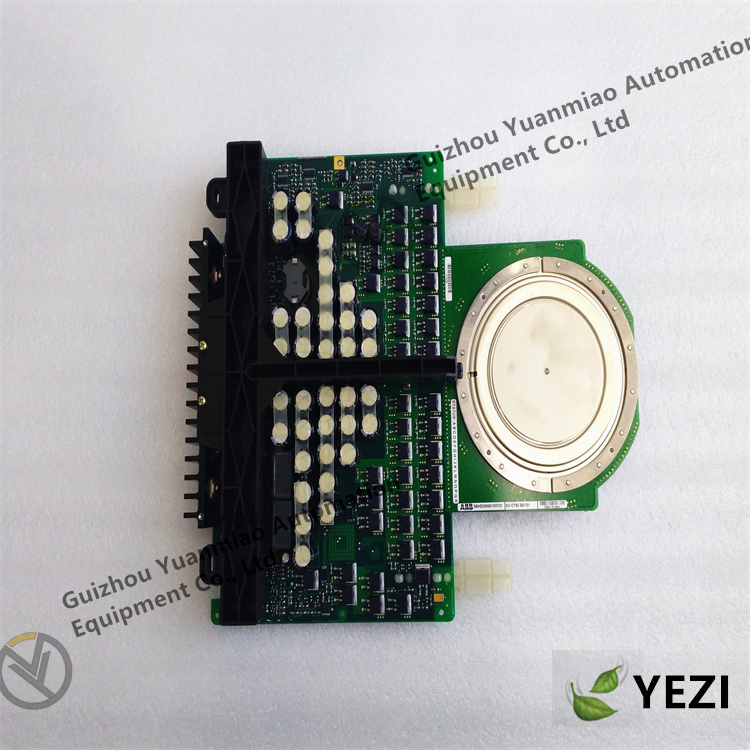

5SHY3545L0009 5SHY thyristor
Product model: 5SHY3545L0009 3BHB013085R0001
Brand: ABB
Type: thyristor IGCT module
Description: This is a power converter component used to control the direct current transmission and conversion of alternating current energy. IGCT integrates GTO chips with anti parallel diodes and gate driver circuits, and then connects them with the gate driver in a low inductance manner on the periphery. Combining the stable turn off capability of transistors and the low on state loss of thyristors, IGCT leverages the performance of thyristors during the conduction stage and exhibits the characteristics of transistors during the turn off stage.
Characteristics: It has high reliability, high efficiency, high performance, large current, high blocking voltage, high switching frequency, compact structure, low conduction loss, and low manufacturing cost, high yield, and has good application prospects.
Application areas: Widely used in power transmission, power conversion, power control, and power protection, it has been applied in power system grid devices (100MVA) and medium power industrial drive devices (5MW), and has also been successfully applied in the field of medium voltage frequency converters.
Product type: It is a thyristor IGCT module. IGCT, also known as Integrated Gate Converter Thyristor, integrates GTO chips with anti parallel diodes and gate driver circuits, and then connects them with the gate driver in a low inductance manner on the periphery.
Functional features:
High efficiency: Adopting advanced thyristor technology and circuit design, it can achieve efficient power control and conversion, reduce energy consumption and heat generation.
High reliability: After strict quality control and testing, it can operate stably in various harsh environmental conditions, reducing failures and maintenance costs.
High performance: Combining the stable turn off capability of transistors with the advantages of low on state losses of thyristors, it exhibits the performance of thyristors during the conduction stage and the characteristics of transistors during the turn off stage. It has the characteristics of high current, high blocking voltage, high switching frequency, compact structure, and low conduction loss. Moreover, the manufacturing cost is low, the yield rate is high, and it has great application prospects.
Application areas: Widely used in power transmission, power conversion, power control, and power protection, it has been applied in power system grid devices (100MVA) and medium power industrial drive devices (5MW), and has also been successfully applied in the field of medium voltage frequency converters.
Related products:
| ABB | PPD512 A10-454000 |
| ABB | PM891K01 3BSE053241R1 |
| ABB | AC800M 3BSE053240R1 PM891 |
| ABB | PM866K02 |
| ABB | PM866AK02 |
| ABB | PFTL201C 10KN 3BSE007913R10 |
| ABB | 5SHY4045L0004 |
| ABB | 5SHY4045L0006 |
| ABB | PPD103-B03-10-150000 |
| ABB | PPD113-B03-10-150000 |
| ABB | 5SHY3545L0010/3BHB013088R0001 |
| ABB | 5SHX2645L0002 |
| ABB | 5SHX2645L0004 |
| ABB | 3BHB021400R0002 5SHY4045L0004 |
| ABB | PFCL201C 10KN |
| ABB | PM511V16 |
| ABB | PPD113 |
