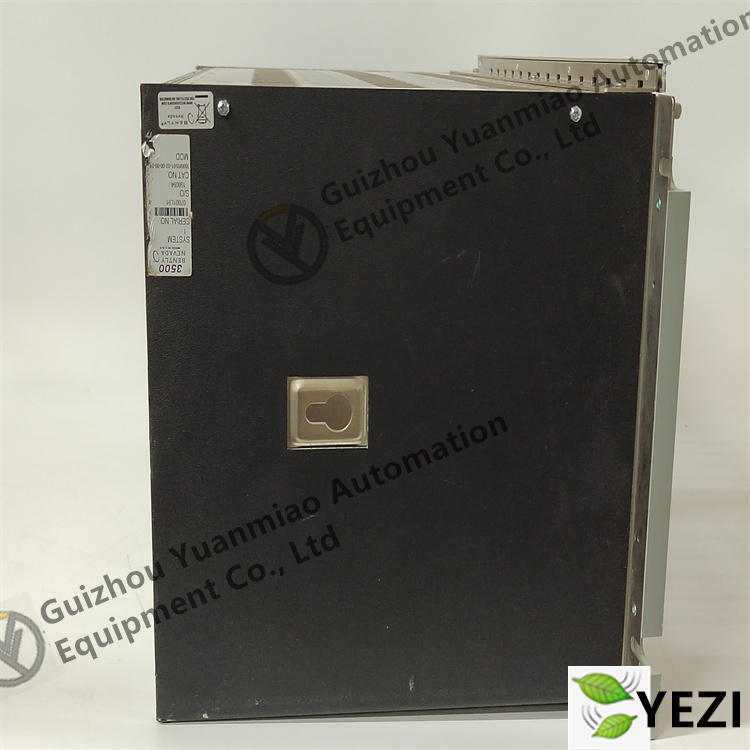

3500/25-01-03-00 Key phase module BENTLY
A half height, dual channel module on the Bentley 3500/25-01-03-00 Keyphasor Module, which is used to provide key signals to the monitoring module of the 3500 frame. This module receives input signals from eddy current sensors or electromagnetic sensors and converts them into digital key phase signals, which are indicated when the key phase mark on the shaft is below the key phase sensing probe. The 3500 monitoring system can receive four key signals. Each key signal is a digital synchronization signal pulse used for monitoring modules and external diagnostic devices to measure vector parameters such as 1X octave amplitude and phase.
3500/25-01-03-00 is an enhanced key phase module developed by Bently Nevada. It is a half height, dual channel module used to transmit key signals to the monitor module in the 3500 rack. When the Keyphasor marker on the axis aligns with the Keyphasor sensor, the module uses a magnetic sensor or proximity probe to detect the alignment and converts the input signal into a digital Keyphasor signal.
3500/25-01-03-00 Function Description
For regular settings, the 3500 mechanical protection system can accept up to four key trust numbers, and for paired configurations, it can accept up to eight.
The event pulse (called key signal) of each rotation or multiple rotations of the rotating shaft or gear can be used for precise timing detection.
Therefore, the 3500 monitoring module and external diagnostic tools can measure shaft speed and vector characteristics, such as 1X vibration amplitude and phase.
Enhanced Keyphasor Module
The enhanced 3500 system module is called the enhanced key phase module. While maintaining full backward compatibility in terms of shape, fit, and functionality with existing Keyphasor modules used for legacy systems, it provides higher Keyphasor signal processing capabilities than previous designs. The revised 149369-01 module completely replaces the Keyphasor module, PWA 125792-01.
Whenever a Triple Modular Redundancy (TMR) application requires system key phase input, the 3500 system should use two key phase modules. In this setup, modules run in parallel, providing primary and secondary key signals to other modules in the rack.
If the number of primary phase input signals does not exceed four, a system with four or more key phase inputs can use paired arrangement.
