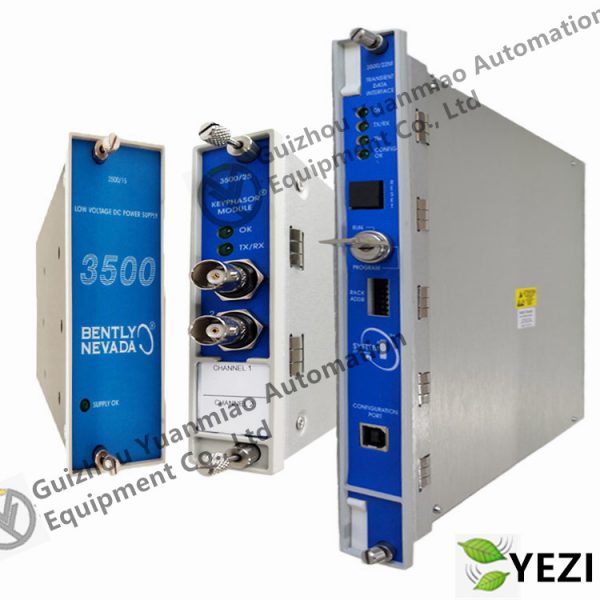

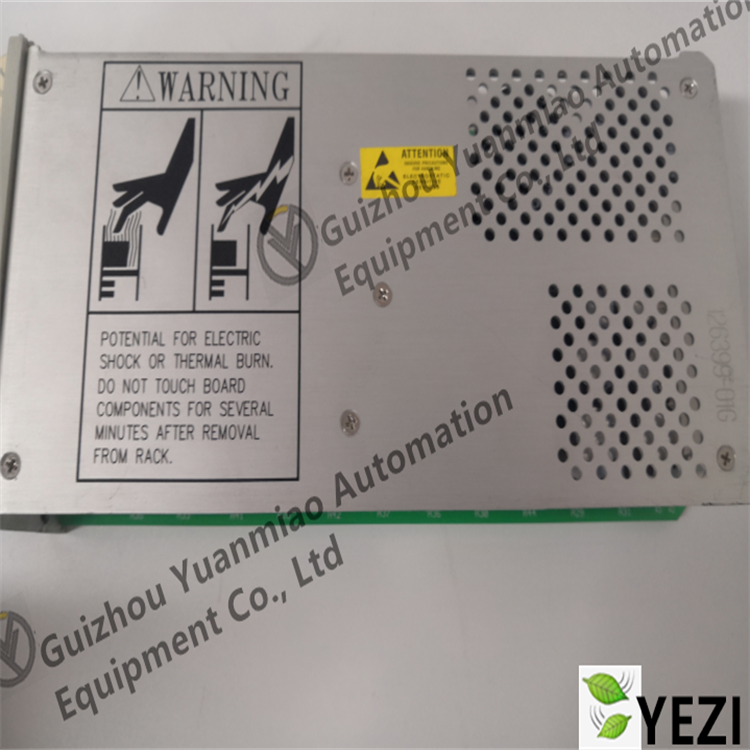

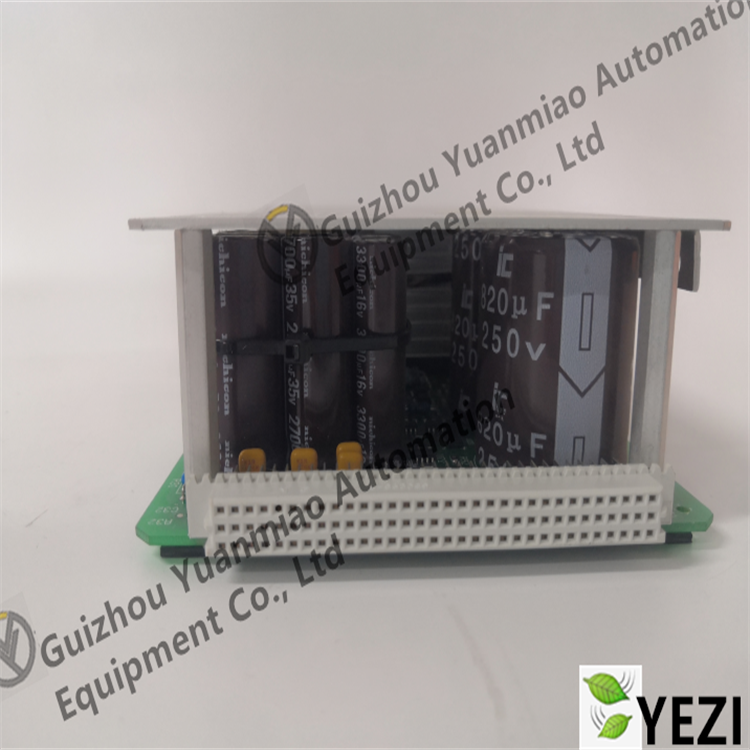

3500/15 Power module BENTLY
Function: Bently Nevada Mechanical Condition Monitoring
Related description:
The 3500/15 is available in both AC and DC forms and is compatible with voltage sources around the world. It adopts row noise filtering as the standard form.
Single power supply or redundant dual power supply can be used in the framework when power interruption is not allowed
3500/15 AC and DC power supply is half height
The module must be installed in the designated slot on the left side
Side of the rack. The 3500 rack can contain one or two power supplies
Provide any combination of AC and DC. Any power source
It can supply power to the entire rack.
When two power supplies are installed in the rack
The lower slot is used as the main power supply, while the other slot is located
The upper slot is used as a backup power source. If already installed, the second one
The power supply is a backup power source for the main power supply.
Removing or inserting any power module will not
As long as there is a second power supply, the operation of the rack will be interrupted
The power supply has been installed.
3500/15 AC and DC power supply can accept a wide range
And convert it into an acceptable voltage
For use by other 3500 modules. The following power sources
Can be used for 3500 series mechanical protection
System:
Universal AC power supply
High voltage DC power supply
Low voltage DC power supply
Universal AC power supply and PIM (power input)
The module is not compatible with the traditional 3500
AC power supply, high voltage AC PIM, and low voltage
Voltage AC PIM.
High voltage and low voltage DC power supply
The power supply and PIM (power input module) are not available
Compared to traditional 3500 high voltage and
Low voltage DC power supply and PIM.
Related article recommendations
The 3500/15 AC and DC power supplies are half height modules and must be installed in the designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combination of AC and DC. Any power source can supply power to the entire rack.
The 3500/15 AC and DC power supplies can accept various high or low input voltages and can be converted to the voltage required by the 3500 module. They are an ideal choice for mechanical protection systems, and if backup is needed, one or two power sources can be used. After installing two power supplies, the lower slot accommodates the main power supply and the upper slot accommodates the redundant power supply.
The 3500/15 power supply can provide AC or DC power to the 3500, including transient data interface (TDI), separate monitoring module and input/output (I/O) module, as well as all connected sensor monitoring systems in mechanical protection and conditions. Modules can be “hot swappable” by removing or inserting any power module without damaging the rack.
